3WPZ-1500A Manufacturer sale price agricultural tractor mounted self-propelled boom sprayer split medicine box

1 meter
MOQ
3WPZ-1500A Manufacturer sale price agricultural tractor mounted self-propelled boom sprayer split medicine box
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Condition: New
Type: Self-propelled sprayer
By wheel: 4WD
Rated Power (HP): 100HP
Usage: agricultural sprayer
Drive Type: 4 drive transmission
Certificate: CCC
Warranty: 1 Year
Key Selling Points: Paddy field fight medicine
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, Pressure vessel, Gearbox, Engine, Gear, PLC
Engine Brand: YUNNEI
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Home Use, Retail, Other
Showroom Location: None
Prouduct model: 3WPZ-1500A
Wheel drive: 4*4
Dimension: 5370*2140*2530mm
Weight: 2200kg
wheel tread: 1800mm
Wheel base: 2350mm
Min land clearence: 1050mm
Tire size: 1180mm Pneumatic tire
Boom length: 1810mm
Medicine box volume: 1000L+500L
After-sales Service Provided: Video technical support
After Warranty Service: Video technical support
Local Service Location: None
Basis informatie
Certificering: CCC
Model Number: 3WPZ-1500A
Betalen & Verzenden Algemene voorwaarden
Productomschrijving

Product Description

The chassis is high, the ground clearance is large, and the passability is good. It is suitable for the growth cycle of not-so-far crops; the spray boom is long and the medicine box capacity is large, which replaces the manual 40 times; the four-wheel-drive four-steer, small and flexible turning radius, easy to work in the field .
1. The only high ground clearance three-point bearing drive axle independently developed, designed and produced;
2. The only complete machine manufacturer that independently develops, designs and produces core components;
3. The uniqueness of the spraying system. Only when there is health, there is everything, and when there is healthy life, there is a home;
4. Full hydraulic balance device spray system;
5. Special steel frame, electrophoresis coating of the whole vehicle;
6. High-density rubber tires;

7. The fourth generation MAITE4 has a special appearance, exquisite workmanship, and unique Chinese red
8. The side gear is adopted to allow users to work easily;
9. The front spray frame is supported by three points, which is safe and stable;
10. The material of the ceiling is polyethylene;
11. The 4 U-shapes on the car are all produced in molds by themselves;
12. Use single-layer steel wire return pipe and oil inlet pipe;
13. Adopt 495 large radiators;
14. The switch handle of the fertilizer spreader has a positioning function;
15. The frame of the whole vehicle adopts pure 100×50 cold drawn square tube;
16. Adopt large silencer

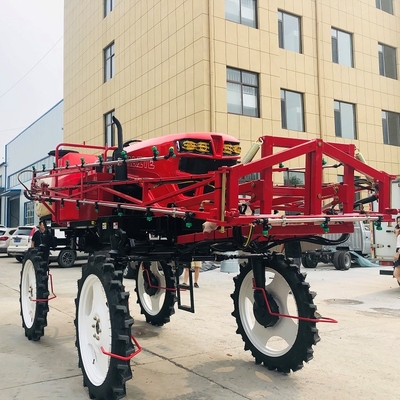

3WPZ-1500A Self-propelled sprayer

Prouduct model 3WPZ-1500A
Wheel drive 4×4
Dimension 5370×2140×2530mm
Weight 2200kg
wheel tread 1800mm
Wheel base 2350mm
Min land clearence 1050mm
Tire size 1180mm Pneumatic tire
Boom length 1810mm
Medicine box volume 1000L+500L
Steering Type Four-wheel steering
Engine Specification
Engine model YUNNEI
Engine type water cooled, vertical, 4 stroke and direct injection
Rated power(kw) 74
Rated revolution 2400r/min
Start way Electric start
Remarks Optional installation of fertilizer spreader, wheel track/medicine tank capacity/tire/spray bar can be customized.
